Nanostructured core-shell semiconducting electrodes with a specified geometry - design, synthesis and photoelectrochemical characterization
Project coordinator: Leszek Zaraska
Duration: 2019-2025
Continuously growing request for energy, together with the depletion of fossil fuels, makes the development of clean, earth-abundant and renewable energy sources one of the most important challenges for the modern science. In this context, gaseous hydrogen has been considered as a very promising alternative fuel, offering very high energy density and environmental friendliness.
Therefore, many different strategies for hydrogen production have been already proposed. However, most of them are either based on fossil fuels or require relatively high production costs. Since the cost of water is negligible, significant attention is recently focused on the methods based on the electricity-driven splitting of water into H2 and O2. In 1972 Fujishima and Honda demonstrated for the first time that water splitting could also be achieved by photoelectrolysis. Since then, photoelectrochemical (PEC) water splitting has been attracting a continuously growing interest. However, many challenges still should be solved to improve the energy conversion efficiency to allow a large-scale hydrogen production and practical application of PEC cells.
Therefore, within the proposed project extensive fundamental research will be performed that will result in the development of the new method for fabrication of novel nanostructured photoelectrodes (photoanodes and photocathodes) based on well-ordered arrays of core-shell SnO2/TiO2, ZnO/TiO2, and Cu2O/SnO2 nanowires will be developed and optimized. The most innovative aspect of the project will be the use of a new template-assisted electrochemical method to obtain arrays of nanowires with different morphologies (straight, with modulated diameters, Y-shaped and serrated) directly on conductive glass substrates. A complex characterization of as obtained nanostructured photoelectrodes will also be performed in order to establish any correlations between material morphology, composition, structure and its photoelectrochemical activity.
It is strongly expected that the proposed novel core-shell nanowire arrays with unique 3D morphologies will be excellent candidates for efficient photoelectrodes in PEC water splitting systems.
Details of our research can be found in the following publications:
A. Świerkula, L. Zaraska, Tuning the geometry of porous alumina layers via anodization in mixtures of different acids, J. Solid State Electrochem., accepted.
Porous anodic aluminum oxide (AAO) layers have been obtained by two-step anodization of high-purity Al in two types of acid mixtures, i.e., in H2C2O4–H3PO4 and, for the first time, in H2SO4–H3PO4 systems. The kinetics of oxide formation was examined by monitoring the current vs. time curves while the morphology of the resulting layers was carefully verified by scanning electron microscopy (SEM). A special emphasis was put on establishing correlations between electrolyte composition, the kinetics and effectiveness of oxide growth, and the morphological features of AAO layers (pore and cell diameter, porosity), as well as pore arrangement. It was confirmed that the addition of H3PO4 to both H2C2O4 and H2SO4 electrolytes results in a significant decrease in oxide growth rate, and worsening of pore arrangement, while the values of pore diameter and interpore distance are much less affected. Moreover, the presence of a small amount of phosphoric acid in the reaction mixture allowed for a noticeable increase in pore ordering if anodization was carried out beyond the self-ordering regime, or performing controlled anodization even at voltages at which the burning phenomenon is typically observed. It is strongly believed that manipulating the electrolyte composition by adding another acid may provide another degree of freedom to control the morphology of the resulting nanostructured alumina layers.

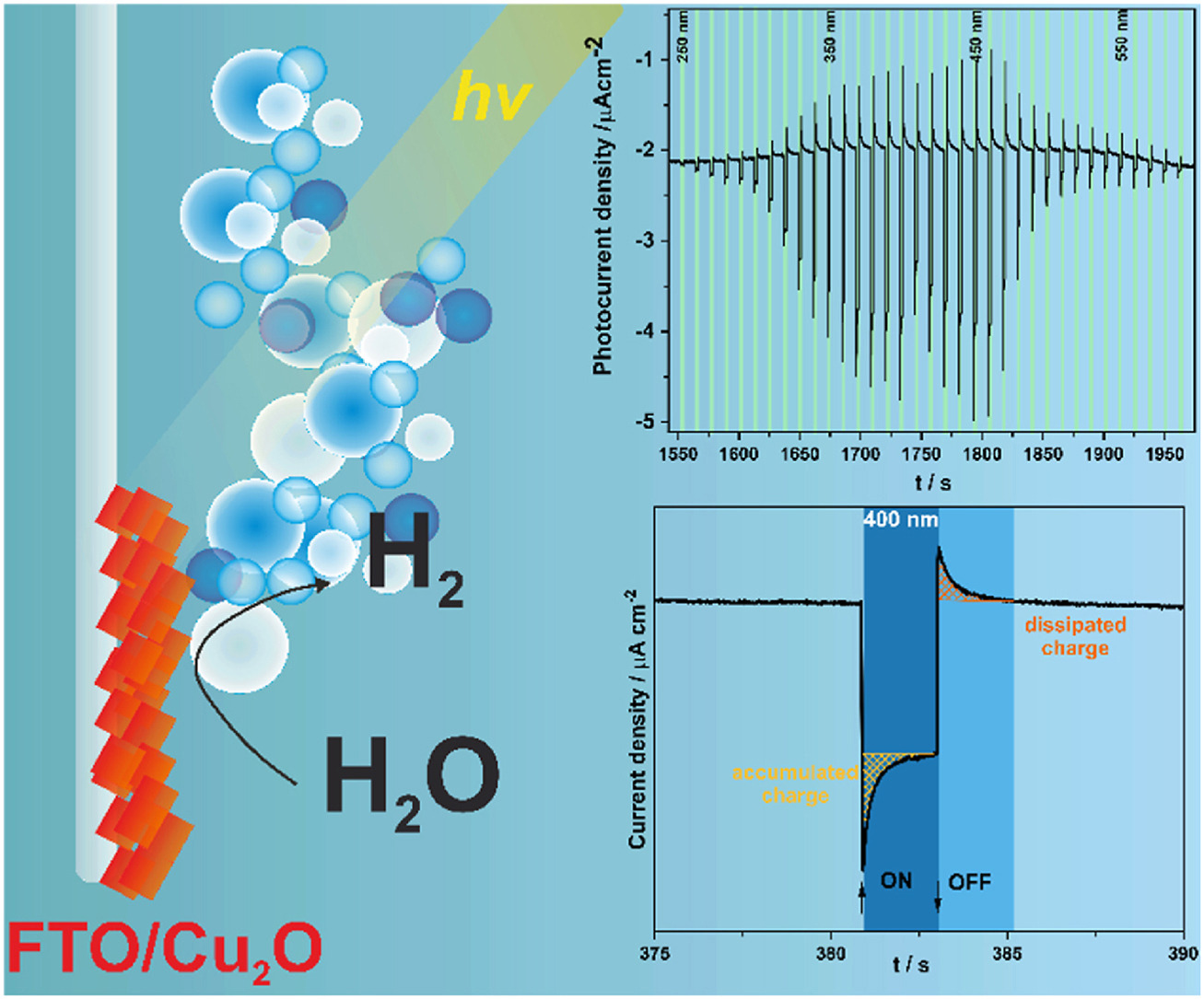

K. Syrek, M. Jażdżewska, M. Kozieł, L. Zaraska, Room-temperature electrodeposition of Cu2O layers and its low-temperature annealing for photoelectrochemical water splitting applications, Optical Materials 156 (2024) 115910.
Cuprous oxide layers were obtained on a conductive glass substrate via room-temperature electrochemical deposition from the electrolyte containing 0.4 M CuSO4, 3 M lactic acid (pH = 12) at −0.5 V vs. SCE for various durations (from 0.25 to 3 h). Physicochemical properties of as-received FTO/Cu2O materials were characterized using SEM, PXRD, and UV–Vis DRS. The photoelectrochemical (PEC) properties of the obtained electrodes were evaluated in detail by analyzing the influence of the energy of monochromatic radiation, and the applied polarization on the resulting photocurrent transients. It was found that Cu2O crystals are getting bigger and sharper with prolonged electrosynthesis duration and a slight decrease in the band gap energy from 2.4 to 2.1 eV with increasing deposition duration was observed. Moreover, this trend was also reflected in PEC properties of resulted material, higher photocurrents were generated by the material deposited for 3 h. More importantly, this PEC response was enhanced by low-temperature (100 °C, 200 °C) annealing. Thermal treatment at 100 °C led to a noticeable improvement in the photoactivity of the samples. Further increasing post-treatment temperature to 200 °C resulted in a further six-fold increase in photocurrents. Finally, the calculated values of accumulated and dissipated charges indicated significantly lower surface recombination after thermal treatment.

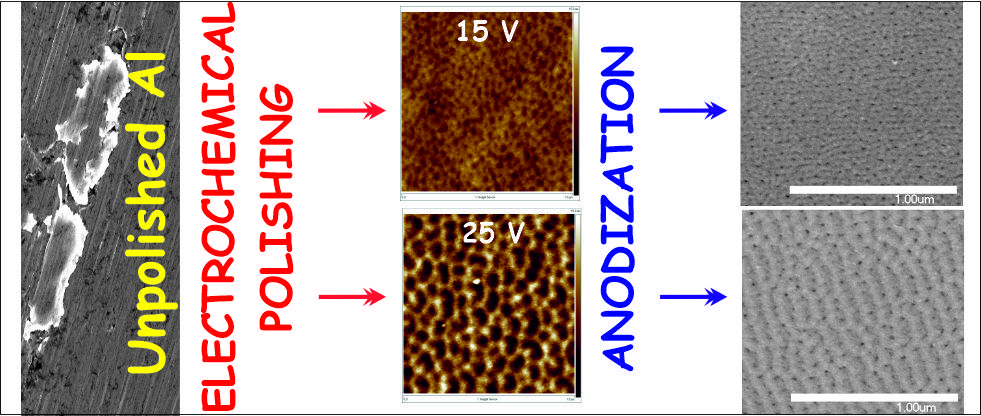

L. Zaraska, M. Szuwarzyński, A. Świerkula, A. Brzózka, The effect of Al polishing conditions on the growth and morphology of porous anodic alumina films, ACS Omega 8 (2023) 34564-34574.
The conditions applied during the electrochemical polishing of aluminum were found to be important parameters for the successive formation of nanoporous alumina films. First, a high-purity Al foil was electrochemically polished in an aqueous solution containing C2H5OH and HClO4 at various sets of conditions, such as applied potential (5−35 V), temperature (0−20 °C), and process duration (10−180 s). Extensive studies of the topography of Al after polishing by scanning electron microscopy and atomic force microscopy allow verification of the correlations between conditions applied during the substrate pretreatment and dimensions of the nanopatterns generated on the metal surface. Next, Al polished samples at two different sets of conditions were used as starting materials for anodization. Unpolished Al samples were also anodized for reference. It was confirmed that electropolishing conditions do not significantly affect the oxide growth rate during anodization and the efficiency of anodic film formation. On the contrary, it was proved that the dimensions of the surface texture formed during Al polishing significantly affect the morphology and pore order within the anodic film. Therefore, it can be stated that it is possible to tune to some extent the arrangement of nanochannels within anodic aluminum oxide films by simply changing conditions during the electropolishing procedure.

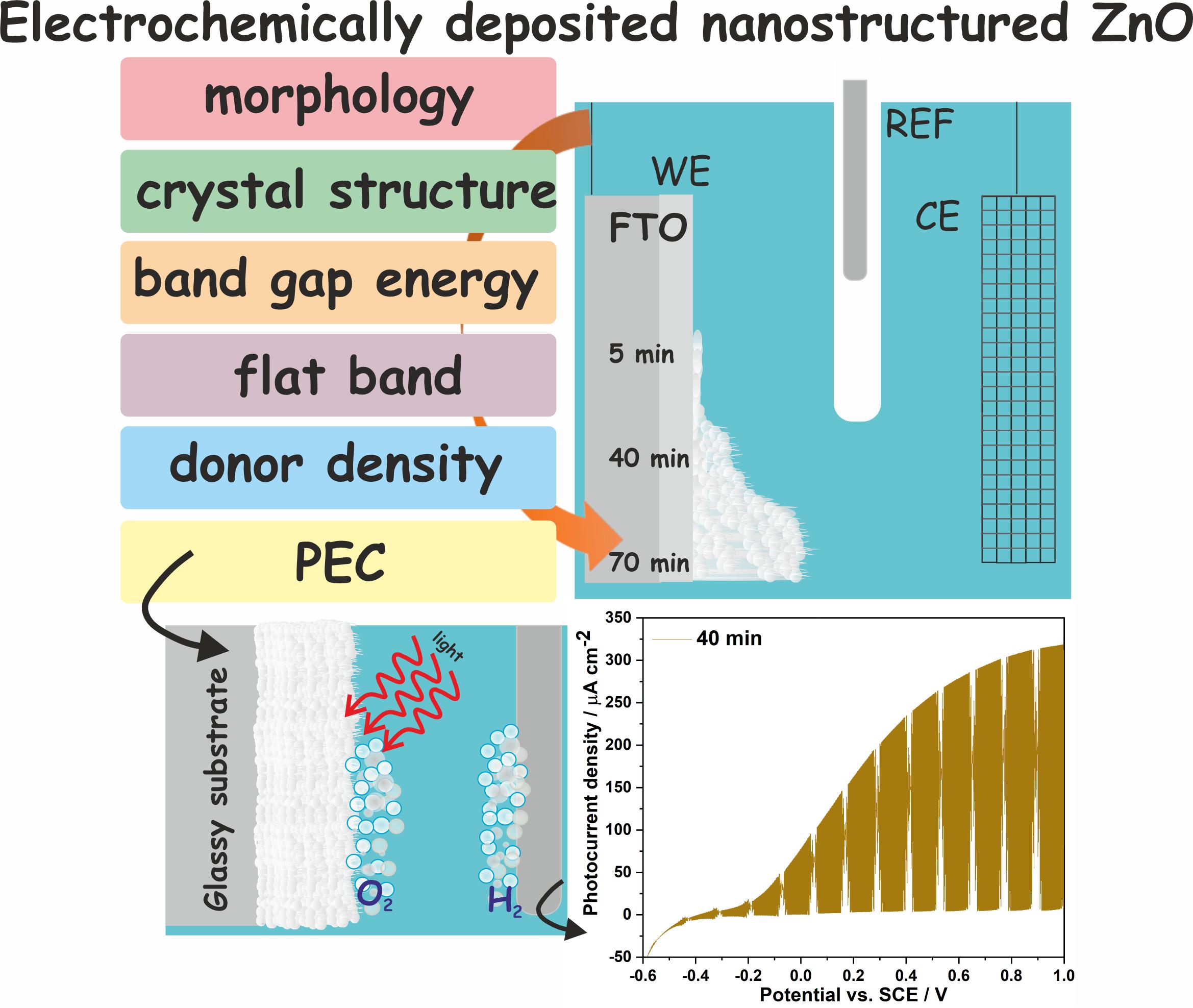

K. Syrek, O. Tynkevych, M. Wojtas, M. Kozieł, Ł. Pięta, L. Zaraska, Room-temperature electrochemical deposition of nanostructured ZnO films on FTO substrate and their photoelectrochemical activity, J. Ind. Eng. Chem. 126 (2023) 171-180.
The possibility of fabrication of nanostructured ZnO layers on conductive glass substrates via simple room-temperature electrodeposition was studied in detail. The process was carried out in zinc nitrate electrolyte at different potentials for various durations. The morphology, composition, and semiconducting properties of the deposits were examined by various techniques. As-synthesized materials were found to be amorphous and co-deposition of the metallic Zn at more negative potentials was confirmed. Nevertheless, thermal treatment in air results in the successful conversion of the as-deposited precipitate to the wurtzite ZnO. The potential of −1.5 V vs. SCE was identified as optimal to achieve both full coverage of the glass substrate, as well as uniform morphology of the deposits. In general, the photoelectrochemical performance of such kind of ZnO photoanodes was found to be significantly dependent on the electrodeposition duration since this parameter strongly affected the thickness, surface morphology, as well as semiconducting properties of the obtained material. In consequence, the photoanode deposited at −1.5 V vs. SCE for 40 min exhibited the most promising photoelectrochemical activity under studied conditions.

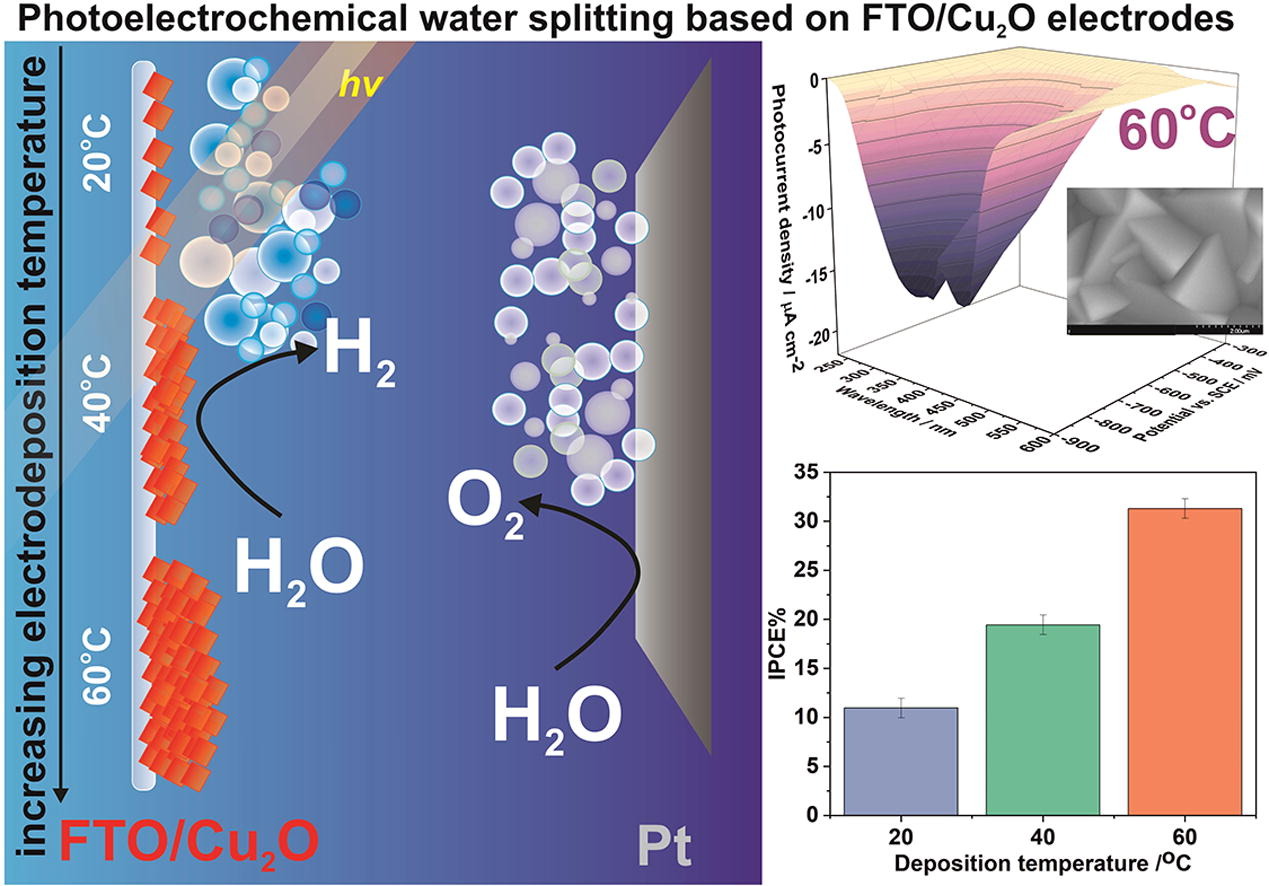

K. Syrek, M. Jażdżewska, M. Kozieł, L. Zaraska, Photoelectrochemical activity of Cu2O electrochemically deposited at different temperatures, J. Ind. Eng. Chem. 115 (2022) 561-569.
Cuprous oxide (Cu2O) is considered one of the most promising candidates for photocathodes in photoelectrochemical systems due to its favorable properties including p-type conductivity and narrow band gap. Therefore, Cu2O thin films were electrochemically deposited on FTO-coated glass from the bath containing 0.2 M CuSO4 and 3 M lactic acid (pH=12) at the potential of −0.5 V vs SCE for 1 h at three different temperatures (20 °C, 40 °C, and 60 °C). The obtained materials were characterized using various techniques including SEM/EDS, XRD, UV–vis DRS, and EIS measurements. It was found that rising the electrodeposition temperature causes not only an increase in the oxide growth rate but also influences the crystallite orientation preference (the higher preferred orientation of the〈111〉plane was observed at higher temperatures). Photoelectrochemical measurements confirmed the superior performance of the FTO/Cu2O cathode synthesized at the highest studied temperature (60 °C), most likely due to the greater thickness of the deposit as well as higher material texture. On the contrary, the optical and electrochemical band gaps were found to be independent of the temperature applied during deposition. Finally, the possibility of using such kind of electrochemically synthesized FTO/Cu2O photocathodes for solar light-induced ammonia synthesis was also demonstrated.

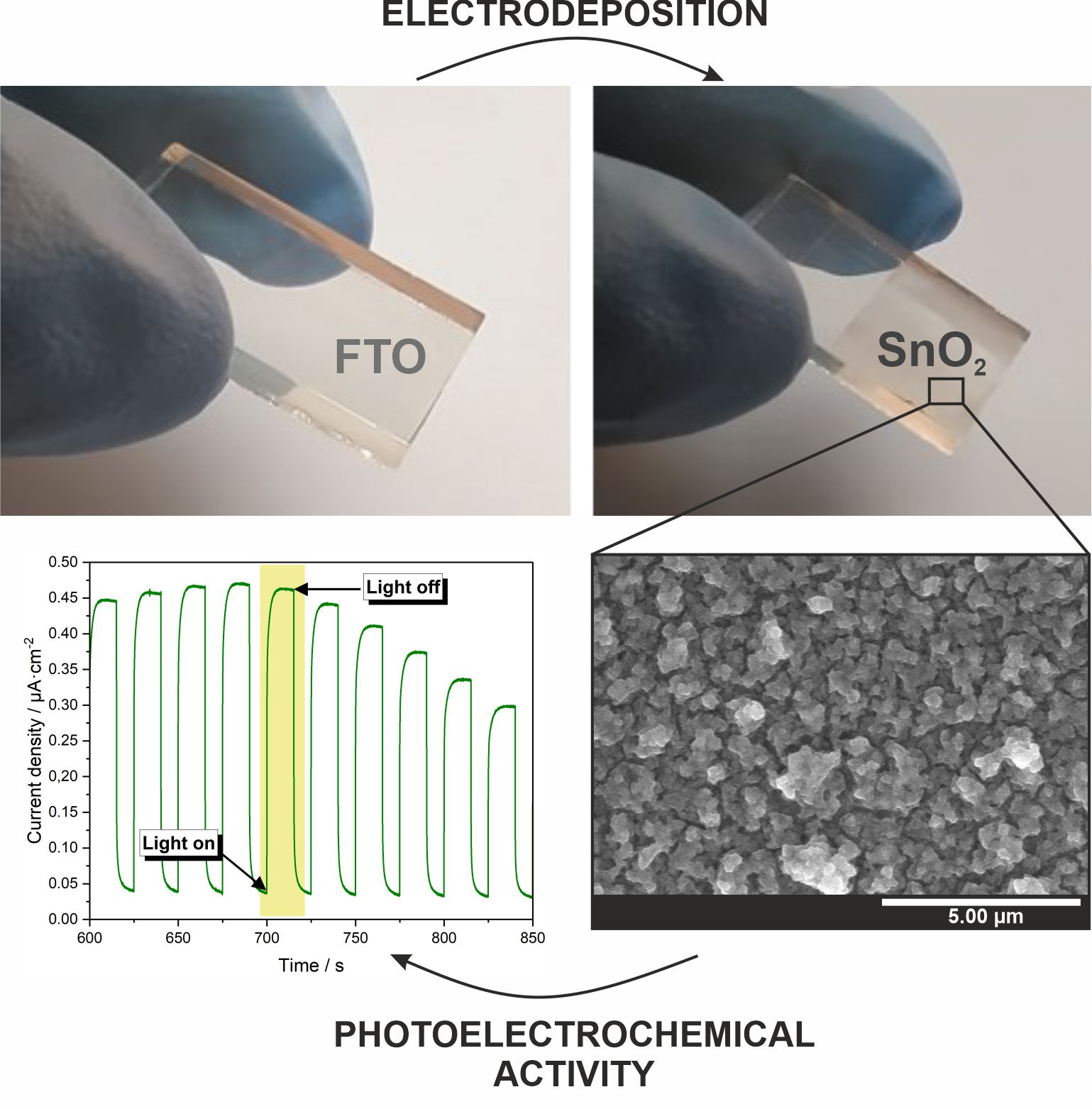

A. Knapik, K. Syrek, M. Kozieł, L. Zaraska, Cathodic deposition of SnO2 layers on transparent conductive substrates and their photoelectrochemical activity, J. Ind. Eng. Chem. 111 (2022) 380-388.
Tin dioxide (SnO2) films deposited on transparent conductive substrates have been considered as promising candidates for photoelectrochemical and photovoltaic applications due to their promising properties such as high electron mobility, stability, and favorable band edges positions. Therefore, a simple electrochemical approach based on the cathodic deposition of SnO2 on a conductive glass substrate was proposed. SnO2 layers were obtained by electrodeposition from SnCl2 solution containing HNO3 at various potentials (from -0.6 V to -1.0 V vs. SCE) for various durations (from 5 min to 180 min). The obtained materials were then annealed in air at 400 °C and characterized. The co-deposition of the metallic phase at the most negative potential was confirmed. However, it was successfully converted to the oxide phase by thermal treatment. The photoelectrochemical activity of the materials during illumination with monochromatic light from the range between 250 and 500 nm was studied. The higher photocurrents were generated by annealed layers, and the most promising photoelectrochemical properties were observed for the sample deposited at -0.8 V vs. SCE for 180 min. It is expected that such a simple electrochemical approach can be an effective strategy for the fabrication of highly efficient photoanodes for photoelectrochemical and photovoltaic applications.
